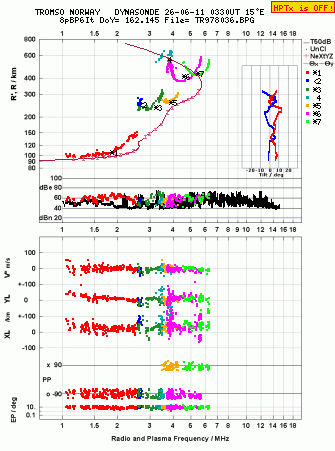

TROMSO NORWAY DYNASONDE
26-06-11 0330UT 15°E 8pBP6It0
DoY=162.14583 File=TR978036.BPG

Profile Parameters
	fpMax, MHz	Hmax, km	ScHt, km
E	2.62	117.937	16.406
F	5.748	353.932	80.361

TEC Parameters (1.0 TECu = 1016 el/m2 col)
bTEC	tTEC	aTEC
5.81	9.286	15.096

Vector Velocities (m/s)
	VX	VY	VZ	VM	VB
E	-15.2±24.6	-61.2±11.2	7.7±85.7	20.2±85.3	-58.3±13.7
F	24.7±42.1	57±5.7	-6.3±65.3	-17.9±64.5	54.5±11.4

Irregularity Parameters
	SPIN	SPAM
E	0	0
F	0	0
