EISCAT > EISCAT Tromsø Observatory  > Heating Facility   > DN > EISCAT Tromsø Dynasonde: Ionogram 2025-06-25 07:36 disclaimer | copyright
Item 282 of 1444 Analysis Date & Time 2025-06-25 07:37:53 UT From File TR2506250736 Index page previous Next page

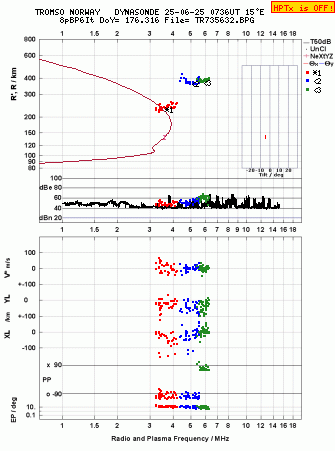

Click for original ionogram image
Click for original ionogram image (opens in a separate window)

TROMSO NORWAY DYNASONDE
25-06-25 0736UT 15°E 8pBP6It0
DoY=176.31667 File=TR735632.BPG

Profile Parameters
 fpMax, MHz Hmax, km ScHt, km
E 0 0 0
F 3.918 173.488 50.133

TEC Parameters (1.0 TECu = 1016 el/m2 col)
bTEC tTEC aTEC
1.207 2.693 3.9

Vector Velocities (m/s)
  VX VY VZ VM VB
E 0±0 0±0 0±0 0±0 0±0
F 0±0 0±0 0±0 0±0 0±0

Irregularity Parameters
  SPINSPAM
E 0 0
F 0 0

Analysis Results in Tabular Format
Analysis Results in SAO Format
Housekeeping Information
